Zmanim Map 3.5 adds Date and Algorithm Selection

World mapThe Zmanim Map was recently updated to version 3.5. This new release adds a number of new features (listed below), and some technical changes over the previous Zmanim Map 3.0 release. With this release, the main focus of the map has shifted to the zmanim tabs. The direction to Yerushalayim tab with davening directions using both the rhumb line and great circle route to Yerushalayim is still present, but is no longer the default tab.

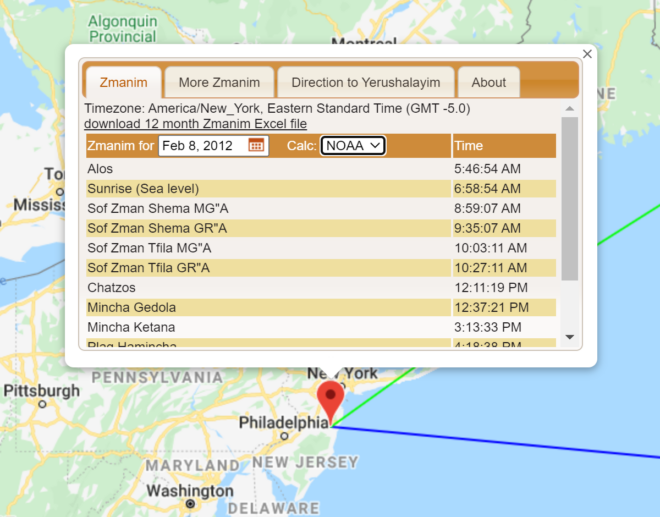

Zmanim Map v3.5

  • The date can now be selected by the user. In previous versions the date was always the current date on the user’s computer (though the map always supported passing the date on the URL using the undocumented date=1969-02-08 parameter). The current date is still the default, but the user can now change the date.
  • The calculation algorithm is now selectable. The Zmanim API supports both the USNO and NOAA algorithms. The map has always used the USNO algorithm, and this remains the default, but users can now use the NOAA algorithm.
  • The Zmanim tab is now the default tab. This reflects user feedback indicating that most people use the map for zmanim.
  • An About tab now provides a mini user guide and general information about the map.
  • The timezone look-up now uses the Google Timezone API. Previously the map had been using the Geo Names web service. Since the elevation service also uses Google, the change to a single stable source will hopefully result in fewer outages.
  • The currently selected tab persists across location changes, so if you were viewing zmanim for a location, and changed the location to see how the zmanim were affected, you will no longer have to change tabs after each move.
  • Candle Lighting was added for Fridays. Erev Yom Tov will not show candle lighting at this point.
  • Performance improvements, minor enhancements, bug fixes and refactoring

FAQ: Outputting Zmanim for A Different Time Zone With the the Zmanim API

Zmanim API FAQ

Question:

Why does the output of zmanim for a different time zone appear incorrect?

Answer:

One of the common issues encountered by developers using the API is that zmanim generated for a different time zone than the user’s time zone may return output that appears incorrect. For example a user in Lakewood, NJ trying to calculate sunrise for Yerushalayim may attempt to use the following code:

String locationName = "Jerusalem";
double latitude = 31.778; // Har habayis
double longitude = 35.2354;// Har Habayis
double elevation = 0;
TimeZone timeZone = TimeZone.getTimeZone("Asia/Jerusalem");
GeoLocation location = new GeoLocation(locationName, latitude, longitude, elevation, timeZone);
ZmanimCalendar zc = new ZmanimCalendar(location);
zc.getCalendar().set(2011, Calendar.FEBRUARY, 8);
System.out.println("Sunrise: " + zc.getSunrise());
System.out.println("Sunset: " + zc.getSunset());

While you would expect a sunrise of 6:27:41 AM and sunset of 5:19:19 PM, running this code on a computer anywhere in the Eastern Standard time zone would generate the following time that appears to be 7 hours early:

Sunrise: Mon Feb 07 23:27:41 EST 2011
Sunset: Tue Feb 08 10:19:19 EST 2011

The issue is simple, and the sunrise and sunset returned above are actually accurate. Zmanim are returned by the Zmanim API as a Java Date object that represents a moment in time (stored internally by Java as Unix Time – the number of milliseconds since the January 1, 1970 GMT). Sunrise in Yerushalayim on February 8th actually happens at 11:27:41 PM on February 7th EST. Java is simply outputting the Date as a String formatted to the users default time zone (EST in this example). The user probably intends to output the time in IST – Israel Standard Time (“Asia/Jerusalem” in the Olson database). To do this you have to output the zmanim using a formatter set to use the “Asia/Jerusalem” time zone.

DateFormat zmanimFormat = new SimpleDateFormat("EEE MMM dd HH:mm:ss z yyyy");
zmanimFormat.setTimeZone(location.getTimeZone());

System.out.println("sunrise: " + zmanimFormat.format(zc.getSunrise()));
System.out.println("sunset:" + zmanimFormat.format(zc.getSunset()));

will output the expected

sunrise: Tue Feb 08 06:27:41 IST 2011
sunset:Tue Feb 08 17:19:19 IST 2011

Below is the full code example.

import net.sourceforge.zmanim.*;
import net.sourceforge.zmanim.util.*;
import java.util.TimeZone;
public class FormatZmanim{
	public static void main(String [] args) {
		String locationName = "Jerusalem";
		double latitude = 31.778; //latitude of Har habayis
		double longitude = 35.2354; //longitude of Har Habayis
		double elevation = 0; //optional elevation
		//use a Valid Olson Database timezone listed in java.util.TimeZone.getAvailableIDs()
		TimeZone timeZone = TimeZone.getTimeZone("Asia/Jerusalem");
		//create the location object
		GeoLocation location = new GeoLocation(locationName, latitude, longitude, elevation, timeZone);
		ZmanimCalendar zc = new ZmanimCalendar(location); //create the ZmanimCalendar
		zc.getCalendar().set(2011, Calendar.FEBRUARY, 8); //set the date
		DateFormat zmanimFormat = new SimpleDateFormat("EEE MMM dd HH:mm:ss z yyyy"); //Create the formatter
		zmanimFormat.setTimeZone(location.getTimeZone()); //set the formatter's time zone
		System.out.println("sunrise: " + zmanimFormat.format(zc.getSunrise()));
		System.out.println("sunset:" + zmanimFormat.format(zc.getSunset()));
	}
}

Bearing to Yerushalayim and Zmanim Map 3.0

World mapThe Bearing to Yerushalayim and Zmanim Map was recently updated to version 3.0. This new release adds a number of new features to the Zmanim Map version 2.0 update released in March 2010. The main change was updating the Google Map API version from the deprecated v2 to v3. This change increases performance and adds much better support for mobile browsers. The upgrade also means that a Google Maps API key is no longer required. This makes it easy to drop it into any site without any configuration (contact me for details). Zmanim tab v3The technical notes on the original Technical Information about the Bearing to Yerushalayim Map post are still relevant, with very little having changed since the initial implementation.

The following is a partial list of the new features:

  • A number of additional zmanim in the More Zmanim tab, including tchilas and sof zman kiddush levana (if they occur on that day)
  • A link to download a 12 month Zmanim calendar directly from the map (using the same spreadsheet used in the Zmanim Calendar Generator). Clicking on the link from the Zmanim tab will generate a calendar with most typically used zmanim, while clicking on the link in the More Zmanim tab will download the full set of zmanim. These are available as the Calendar Type option in the Zmanim Calendar Generator
  • Increased use of jQuery and jQuery UI for formatting the zmanim tables to better match the site look & feel
  • Refactoring to make the code more robust and slightly more maintainable
  • Timezones for all of Israel now display the timezone of Asia/Jerusalem as opposed to the Asia/Gaza returned for parts of Israel by the GeoNames TimeZone web service

From a technical perspective there were a number of changes required due to updating the Google Maps API from v2 to v3. These include:

  • v3 no longer supports tabbed info windows, so the tabs are now implemented using jQuery UI
  • Renaming of a number of classes and functions such as GLatLng to LatLng
  • A number of functions that were part of API v2 were removed in v3. One example is the removal of radians in the LatLng that had been available as GLatLng.latRadians(). These missing functions required for the direction to Yerushalayim calculations are now supported in the Zmanim Map using prototypes

Bearing to Yerushalayim and Zmanim Map 2.0

World mapThe availability of the Bearing to Yerushalayim and Zmanim Map was originally announced on December 30, 2007. At the time there were a number of bugs related to the Google Map API. These bugs were reported to Google and eventually fixed. Since that time, the only change was a minor JavaScript fix for IE. The Bearing to Yerushalayim worked, but the zmanim tabs had a major issue because the timezone calculated was done based on the user’s current browser timezone. This made it tricky to check zmanim in a different location or timezone than the user’s current timezone. Zmanim tab using timezonesI recently updated the map to look-up the actual timezone of the latitude and longitude selected by the user. This was implemented by doing a look-up at the geonames.org timezone web-service. The timezone is passed to the Zmanim API and used to generate the XML output of a list of daily zmanim that is displayed in the map. Since the Olson timezone database changes a few times a year, there will almost certainly be cases where the proper timezone can’t be determined. Some of these are changes of timezone names, such as the change from Asia/Calcutta to Asia/Kolkata (my host will not run the TZ Updater tool). In these cases a simple mapping between the old and new was added to the map. In cases where the timezone can’t be determined the timezone will default to GMT. Ocean locations within 10 km of land will use the closest landmass, but anywhere beyond 10 km will default to GMT. One issue with using the geonames.org webservice, is that when it is down, the map will timeout. I experimented with various ways of dealing with this, but unless my host updates the Java version from 1.4, they are too complex to use at this time.

See the Technical Information about the Bearing to Yerushalayim Map post for technical details about the original implementation.

Updated Zmanim Jar Released – Please Download the Latest

Zmanim API ReleaseIn December when developing the Zmanim/Bearing to Yerushalayim map (blog post), I noticed a problem with the code used to generate zmanim. The API returns a Java Date object. Usually only the time is of interest, and the date is ignored, but in some cases (when a timezone offset is specified without using the Olson DB name (such as America/New_York) or if the GMT timezone is used for other locations, and the local standard time is calculated as an offset of GMT), the date of the sunset returned was earlier than the sunrise date. This caused zmanim such as Sof Zman Shema for some locations to be incorrect, since the math used was comparing surnise to a sunset on the incorrect date, causing some very odd behavior. Updated files that correct this issue were uploaded to the site on Dec 26th. I was notified today by a developer using the jar, that not all the download links were pointing to the updated versions, and this caused issues for his program (a post about his project will be posted in the near future). All the links have now been updated. Since the old code can sometimes generate incorrect zmanim, it is highly suggested that you replace your current jar with the latest version of zmanim.jar (or zmanim.zip).

Along with the fix mentioned above, a number of other small fixes were done. These include among other minor issues, fixed, better and simplified XML output from the toString method, better error handling for expected error conditions, that had previously caused errors in the generations of zmanim for areas in the arctic circle such as Thule, Greenland. In case you are curious, someone did actually try this, and the error logs lead me to find the issue. The IP address used for the request mapped back to the Thule Air Base.

Zmanim Calendar Generator Back Up (With Proper DST Rules)

Java CalendarThe Zmanim Calendar Generator has been back up for about 2 weeks, but due to a downgrade in the Java version used, the DST issue that was as mentioned as fixed in a previous post returned. This has now been fixed using the Timezone Updater Tool. Please let me know if you run into any issues.
